Intro
Agar lines aur angles ka naam sunte hi confusion hota hai, to aap akela nahi ho.
Bahut se students yahin se geometry se darrna shuru kar dete hain.
Is lesson ka goal darr hatana hai, formula thopna nahi.
Hum dheere-dheere dekhenge ki lines kaise behave karti hain.
Jaise blackboard par teacher samjhata hai, waise hi yahan samjhenge.
Aaj hum sirf ek baat pakki karenge: lines aur unke beech ke angles ka logic.
Concept Explanation
1. Intersecting Lines – What & Why
What:
Jab do lines ek point par milti hain, to unhe intersecting lines kehte hain.
Why:
Jab lines milti hain, to angles bante hain.
Geometry me angles hi sabse important hote hain.
How (simple):
Do lines milengi →
4 angles banenge.

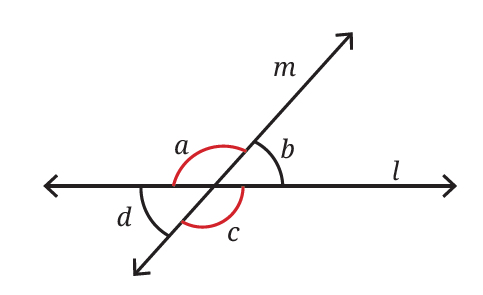

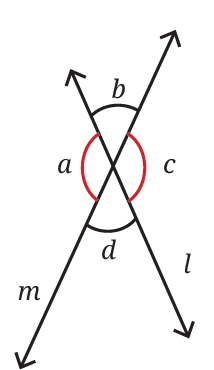

Intersecting Lines – Detail Explanation
Jab do lines intersect karti hain, to:
- 4 angles bante hain
- Saamne-saamne wale angles hamesha equal hote hain
- Side-by-side angles ka sum 180° hota hai
Iska reason measurement nahi, logic hai.
Straight line ka angle 180° hota hi hota hai.

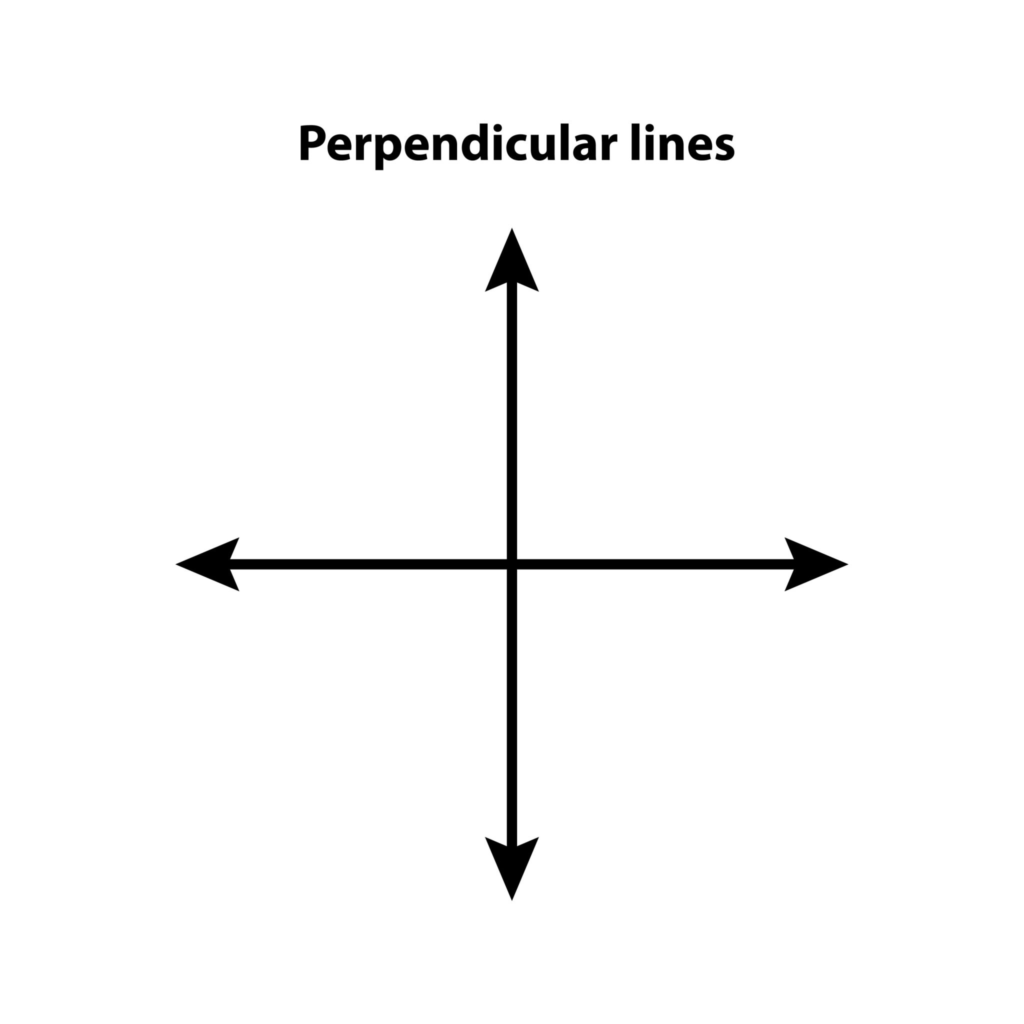

2. Perpendicular Lines
What:
Jab do lines 90° par milti hain, unhe perpendicular lines kehte hain.
How:
Agar chaaron angles barabar hain,
aur har ek 90° ka hai → lines perpendicular hain.
Real life:
Notebook ka corner
Table ke edges
3. Parallel Lines
What:
Jo lines kabhi nahi milti, chahe jitna extend kar lo.
Why:
Unka direction same hota hai.
Examples:
Railway tracks
Notebook ki ruled lines
Important baat:
Lines same plane par honi chahiye.

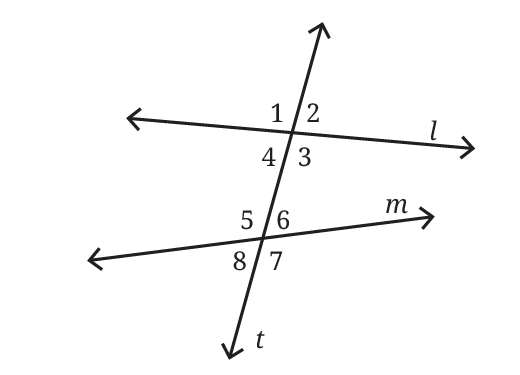

4. Transversal
What:
Ek aisi line jo do lines ko cut kare.
Result:
8 angles bante hain.

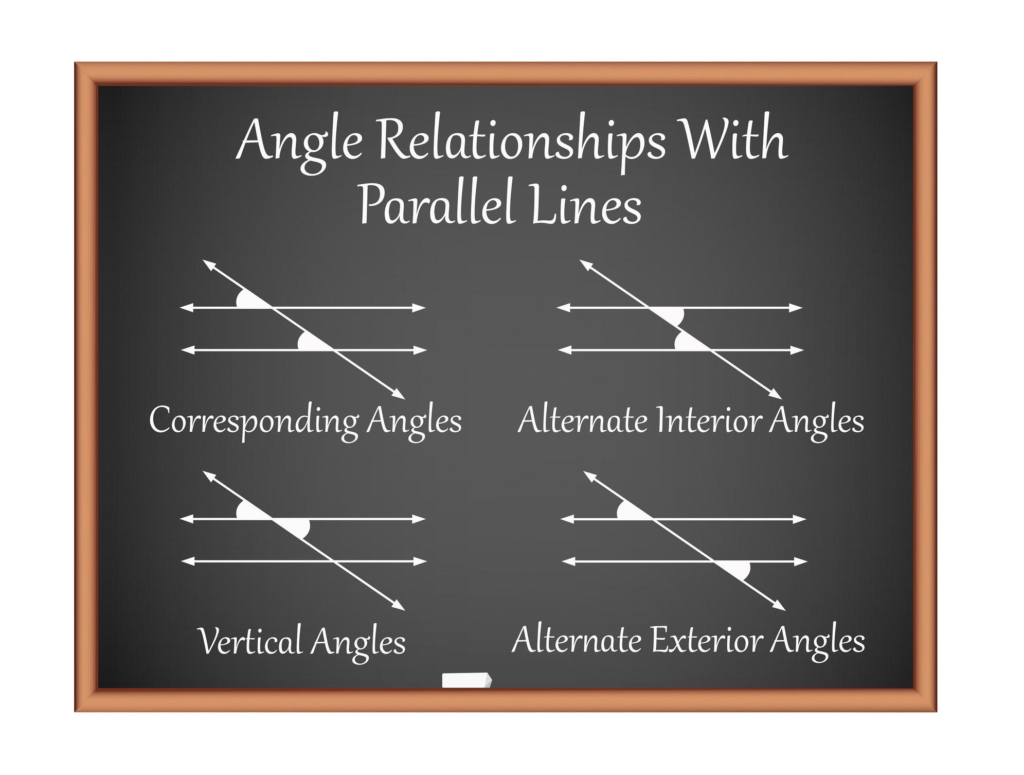

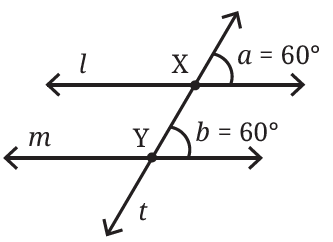

5. Corresponding Angles
Jab transversal parallel lines ko cut karti hai:
- Same position ke angles
- Dono lines par
➡️ Corresponding angles = equal
6. Alternate Angles
Z jaisi shape ban jaye:
➡️ Alternate angles = equal
7. Interior Angles (Same side)
Transversal ke ek hi side ke andar wale angles:
➡️ Sum = 180°
Examples
- Agar ek angle 120° hai, to uska vertically opposite angle = 120°
- Agar ek angle 50° hai, to uska linear pair = 130°
- Corresponding angle 60° hai → doosra bhi 60°
- Alternate angle 70° hai → doosra bhi 70°
- Interior angle 50° hai → same side wala 130°
Real Life Use
Railway tracks parallel hote hain.
Agar ek jagah angle bigad jaye,
to poori line unsafe ho sakti hai.
Isi liye engineers angles ka logic use karte hain,
sirf scale se naapte nahi.
Try It Yourself
Notebook par:
- Do parallel lines banao
- Ek transversal draw karo
- Ek angle assume karo (maan lo 40°)
Baaki angles logic se nikaalo.
Summary
- Intersecting lines → vertically opposite angles equal
- Linear pair → sum 180°
- Perpendicular lines → 90°
- Parallel lines → kabhi nahi milti
- Transversal → 8 angles
- Corresponding → equal
- Alternate → equal
- Interior same side → 180°
| Situation | Rule |
|---|---|
| Opposite angles | Equal |
| Side angles | 180° |
| Corresponding | Equal |
| Alternate | Equal |
| Interior same side | 180° |
| Perpendicular | 90° |
| Parallel | Never meet |
| Transversal | 8 angles |
Practice Questions
- Agar ek angle 35° hai, uska linear pair kya hoga?
- Agar corresponding angle 80° hai, doosra kya hoga?
- Vertically opposite angle 110° ho to saamne wala?
- Interior angle 65° ho to same side wala?
